Basic Requirements for Plans

The items listed below must be provided for all applications for minor domestic structures such as sheds, carports, and verandahs:

Form is available at Council offices or can be downloaded here.

Fees will be advised when lodging your application. Please contact Council if you wish to know which fees will apply beforehand.

3 copies, drawn to a scale of 1:100 or 1:200, showing the following information:

  • North point.
  • Boundaries and dimensions of the entire site as per the current Certificate of Title.
  • Location and dimensions of any easements on the land (the Certificate of Title will show whether any easements that apply to your land).
  • Location of proposed structure on the land.
  • Location and use of all existing buildings (i.e. dwelling, sheds).
  • Distance between the proposed structure and other structures on and, and distances to the site’s boundaries (if not built on boundary).
  • Location of any Significant or Regulated Trees on the site or adjoining land, which could potentially be affected by, or affect the works.

3 copies, drawn to a scale of 1:100 or 1:200 (where applicable), showing the following information:

  • All elevations of the proposed structure (lengthways and widthways).
  • The dimensioned overall height of the proposed structure.
  • A sectional drawing of the structure showing in detail how the structure is fixed to the foundation (soil) and also how it is to be attached to other buildings in  more detail.
  • The materials, finishes and colours of the proposed structure.

Below are some examples of the information required for a minor residential structure:

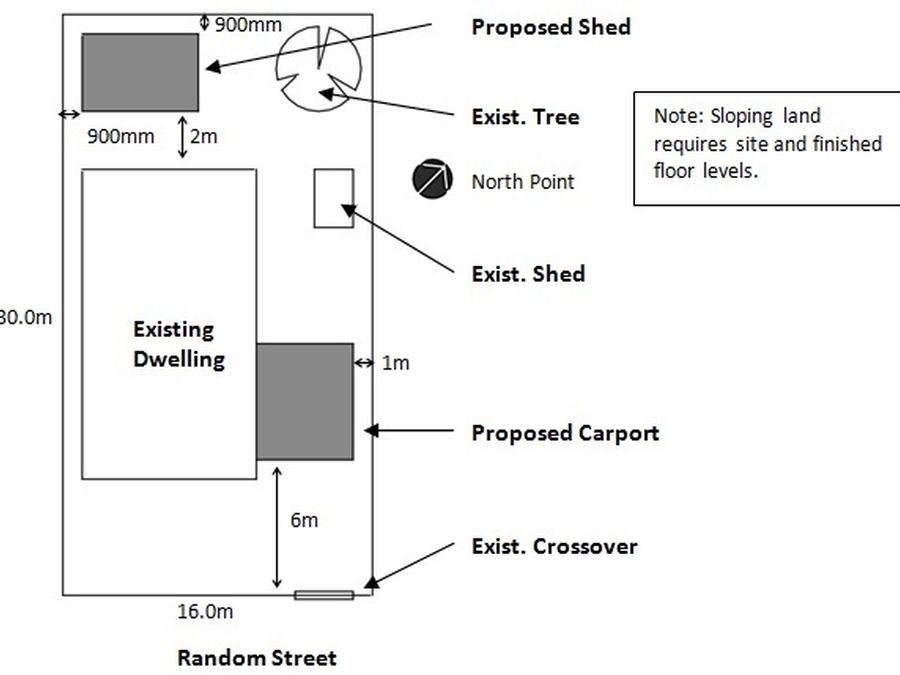

Site Plan: Site-Plan-Sample-1.jpg#asset:4338
Plan View:
Site-Plan-Sample-2.jpg#asset:4339
Elevation:
Site-Plan-Sample-3.jpg#asset:4340
Sectional Drawing(s):
Site-Plan-Sample-4.jpg#asset:4341
Site Plan Sample 1

Other Details

Structures will require a completed Roof Framing Checklist with their application. The checklist is available here - Schedule 5 Roof Framing Checklist.

Applications for pitch timber pergolas can be dealt with using the Timber Framing Code.  Steel framing pitched roof pergolas need to have an engineer’s calculations to test the steel member sizes and to also specify the connection details. Those plans which are received with no calculations will not be approved until calculations have been provided.

If you are constructing a building using standard building specifications (e.g. Olympic Garages, Stratco carports and verandahs), a copy of the specification related to the job should be attached to the applications. These ‘standard’ designs use specific connection and footing details which need to be adhered to during construction.

For ‘non-standard’ designs (i.e. using your own design), a Certificate of Structural Adequacy from a structural engineer will need to be provided with your application.
